A DeviceToken connects the generic device interaction code in PluginKit's C API with the workings of an actual ConnectionDevice. More...

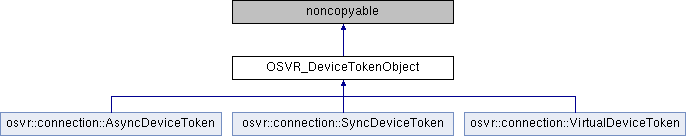

Inheritance diagram for OSVR_DeviceTokenObject:

Public Types
using	EventFunction = std::function< void()>

Public Member Functions
virtual	~OSVR_DeviceTokenObject ()
	Destructor.

std::string const &	getName () const
	Accessor for name property.

void	setUpdateCallback (osvr::connection::DeviceUpdateCallback const &cb)
	Sets the update/wait callback.

void	setPreConnectionInteract (EventFunction const &f)
	Sets a function to be executed at the beginning of connectionInteract()

void	sendData (osvr::connection::MessageType type, const char bytestream, size_t len)
	Send data. More...

void	sendData (osvr::util::time::TimeValue const &timestamp, osvr::connection::MessageType type, const char bytestream, size_t len)
	Send data. More...

osvr::util::GuardPtr	getSendGuard ()

void	connectionInteract ()
	Interact with connection. Only legal to end up in ConnectionDevice::sendData from within here somehow.

void	stopThreads ()
	Stop any threads spawned and owned by this DeviceToken.

void	setDeviceDescriptor (std::string const &jsonString)
	Send a new or updated device descriptor for this device.

template<typename T >
void *	acquireObject (T obj)
	Pass (smart-pointer) ownership of some object to the client context.

bool	releaseObject (void *obj)
	Frees some object whose lifetime is controlled by the client context. More...

Static Public Member Functions
Factory functions
Creates a device token (and underlying ConnectionDevice) that has a wait callback that can block, that is called repeatedly in a thread of its own (managed by OSVR)
static osvr::connection::DeviceTokenPtr	createAsyncDevice (osvr::connection::DeviceInitObject &init)

static osvr::connection::DeviceTokenPtr	createSyncDevice (osvr::connection::DeviceInitObject &init)
	Creates a device token (and underlying ConnectionDevice) that has an update method that runs in the server mainloop.

static osvr::connection::DeviceTokenPtr	createVirtualDevice (std::string const &name, osvr::connection::ConnectionPtr const &conn)
	Creates a device token (and underlying ConnectionDevice) without a traditional, built-in update method - typically for server-internal usage.

Protected Member Functions
	OSVR_DeviceTokenObject (std::string const &name)

osvr::connection::ConnectionPtr	m_getConnection ()

osvr::connection::ConnectionDevicePtr	m_getConnectionDevice ()

virtual void	m_setUpdateCallback (osvr::connection::DeviceUpdateCallback const &cb)=0

virtual void	m_sendData (osvr::util::time::TimeValue const &timestamp, osvr::connection::MessageType type, const char bytestream, size_t len)=0

virtual osvr::util::GuardPtr	m_getSendGuard ()=0

virtual void	m_connectionInteract ()=0

virtual void	m_stopThreads ()

Detailed Description

A DeviceToken connects the generic device interaction code in PluginKit's C API with the workings of an actual ConnectionDevice.

Definition at line 56 of file DeviceToken.h.

Member Function Documentation

void OSVR_DeviceTokenObject::sendData	(	osvr::connection::MessageType *	type,
		const char *	bytestream,
		size_t	len
	)

Send data.

The timestamp for the data is assumed to be at the time this call is placed.

This may block until the next connectionInteract call before forwarding on to ConnectionDevice::sendData, depending on the type of device token.

void OSVR_DeviceTokenObject::sendData	(	osvr::util::time::TimeValue const &	timestamp,
		osvr::connection::MessageType *	type,
		const char *	bytestream,
		size_t	len
	)

Send data.

This may block until the next connectionInteract call before forwarding on to ConnectionDevice::sendData, depending on the type of device token.

bool OSVR_DeviceTokenObject::releaseObject ( void * obj )

Frees some object whose lifetime is controlled by the client context.

Definition at line 113 of file DeviceToken.cpp.

The documentation for this struct was generated from the following files:
