osvr::connection::Connection Class Reference

Class wrapping a messaging transport (server or internal) connection. More...

#include <osvr/Connection/Connection.h>

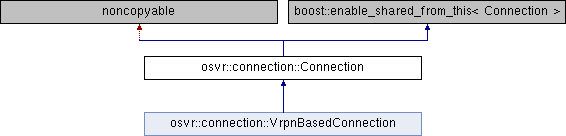

Inheritance diagram for osvr::connection::Connection:

Public Types
typedef std::vector < ConnectionDevicePtr >	DeviceList

Public Member Functions
MessageTypePtr	registerMessageType (std::string const &messageId)
	Register (or retrieve registration) of a message type. More...
ConnectionDevicePtr	createConnectionDevice (std::string const &deviceName)
	Create a ConnectionDevice by registering a full device name. This should be namespaced with the plugin name. More...
ConnectionDevicePtr	createConnectionDevice (DeviceInitObject &init)
void	addDevice (ConnectionDevicePtr device)
	Add an externally-constructed device to the device list.
void	process ()
	Process messages. This shouldn't block. More...
void	registerConnectionHandler (std::function< void()> handler)
	Register a function to be called when a client connects or pings.
void	registerDescriptorHandler (std::function< void()> handler)
	Register a function to be called when a descriptor changes.
void	triggerDescriptorHandlers ()
	Signal a descriptor update and call any/all descriptor handlers.
virtual	~Connection ()
	Destructor.
boost::iterator_range < DeviceList::const_iterator >	getDevices () const
	Get the devices, as a range.

Static Public Member Functions
Factory methods
Factory method to create a local-machine-only connection More to come.
static ConnectionPtr	createLocalConnection ()
static ConnectionPtr	createSharedConnection (boost::optional< std::string const & > iface, boost::optional< int > port)
	Factory method to create a shared connection. More...
static std::tuple< void *, ConnectionPtr >	createLoopbackConnection ()
Context Storage
Retrieve a connection pointer from a RegistrationContext
static ConnectionPtr	retrieveConnection (const pluginhost::RegistrationContext &ctx)
static void	storeConnection (pluginhost::RegistrationContext &ctx, ConnectionPtr conn)
	Store a connection pointer in a RegistrationContext.

Protected Member Functions
virtual MessageTypePtr	m_registerMessageType (std::string const &messageId)=0
	(Subclass implementation) Register (or retrieve registration) of a message type.
virtual ConnectionDevicePtr	m_createConnectionDevice (DeviceInitObject &init)=0
	(Subclass implementation) Register a full device name.
virtual void	m_registerConnectionHandler (std::function< void()> handler)=0
	(Subclass implementation) Register a function to handle "new connection"/ping messages.
virtual void	m_process ()=0
	(Subclass implementation) Process messages. This shouldn't block.
	Connection ()
	brief Constructor

Advanced Methods - not for general consumption
These can break encapsulation rules and/or encourage bad coding habits. Avoid if at all possible.
typedef std::vector< std::string >	NameList
	Type of list of device names.
ConnectionDevicePtr	registerAdvancedDevice (std::string const &deviceName, OSVR_DeviceUpdateCallback updateFunction, void *userdata)
	Record a full device name (namespaced with the plugin name) associated with a given callback. More...
ConnectionDevicePtr	registerAdvancedDevice (NameList const &deviceNames, OSVR_DeviceUpdateCallback updateFunction, void *userdata)
	Record more than one full device name (namespaced with the plugin name) associated with a given callback. More...
virtual void *	getUnderlyingObject ()
	Access implementation details.
virtual const char *	getConnectionKindID ()
	Returns some implementation-defined string based on the dynamic type of the connection.

Detailed Description

Class wrapping a messaging transport (server or internal) connection.

Definition at line 56 of file Connection.h.

Member Function Documentation

ConnectionPtr osvr::connection::Connection::createSharedConnection ( boost::optional< std::string const & >  iface, boost::optional< int >  port  )

static

Factory method to create a shared connection.

Parameters

iface	The NIC/interface to listen on, an empty string or unset (default) means "all interfaces"
port	The port to listen on, unset/default means the default port for the underlying connection implementation.

Definition at line 53 of file Connection.cpp.

MessageTypePtr osvr::connection::Connection::registerMessageType

(

std::string const &

messageId

)

Register (or retrieve registration) of a message type.

Wraps the derived implementation for future expandability.

Definition at line 86 of file Connection.cpp.

ConnectionDevicePtr osvr::connection::Connection::createConnectionDevice

(

std::string const &

deviceName

)

Create a ConnectionDevice by registering a full device name. This should be namespaced with the plugin name.

This also adds the device so created to the device list.

ConnectionDevices often assume they're owned by a DeviceToken (whose constructor calls this method), so doing otherwise is unadvisable.

Definition at line 91 of file Connection.cpp.

ConnectionDevicePtr osvr::connection::Connection::createConnectionDevice

(

DeviceInitObject &

init

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 98 of file Connection.cpp.

void osvr::connection::Connection::process

(

)

Process messages. This shouldn't block.

Someone needs to call this method frequently.

Definition at line 143 of file Connection.cpp.

ConnectionDevicePtr osvr::connection::Connection::registerAdvancedDevice	(	std::string const &	deviceName,
		OSVR_DeviceUpdateCallback	updateFunction,
		void *	userdata
	)

Record a full device name (namespaced with the plugin name) associated with a given callback.

This does not register the name in the underlying connection: it is an advanced method that assumes you have some other way of doing that.

This also adds the device so created to the device list.

Definition at line 107 of file Connection.cpp.

ConnectionDevicePtr osvr::connection::Connection::registerAdvancedDevice	(	NameList const &	deviceNames,
		OSVR_DeviceUpdateCallback	updateFunction,
		void *	userdata
	)

Record more than one full device name (namespaced with the plugin name) associated with a given callback.

This does not register the names in the underlying connection: it is an advanced method that assumes you have some other way of doing that.

This also adds the device so created to the device list.

For use when a single device exposes more than one name.

Definition at line 119 of file Connection.cpp.

---

The documentation for this class was generated from the following files:

• osvr/Connection/Connection.h
• src/osvr/Connection/Connection.cpp
